Performance test of Iomega StorCenter PX4-300R

End of 2009, beginning of 2010 I put an Iomega StorCenter IX4 to the test and published the results in these two blogposts:
Putting your storage to the test – Part 1 iSCSI on Iomega StorCenter IX4-200D and part 2. Recently Iomega sent me their new StorCenter PX4-300R for testing purpose and I was happy to run some Iometer stress tests on it. I was very anxious to learn if the PX4 would be able to outperform the “good old” IX4.



What’s in the box?

The PX4-300R is a rack mountable model of 1U height and comes with rails and the necessary power and UTP cable. When I read the several websites where the unit is sold, it normally comes without disks. The unit I received had four Hitachi 2.0TB HDS723020BLA642 disks in it configured in RAID5, giving me 5.4TB of disk space. Setup is easy, you plug the UTP cable and power cable, boot the unit and check your dhcp server to see what address it picked up. Then there is a web interface that gives you all the management options you need.



Performance

Despite many features the PX4 holds, I was most interested in the performance of this thing. In the 5.4TB volume I created a big NFS volume and a 500GB iSCSI volume. Connected my vSphere5 ESXi hosts to it and moved my performance test VM on to the volume.  This Windows 2003 VM is running on HW level 7 with 1 OS disk and a 20GB test disk (all VMDKs of course). The first set of test where run with a non-aligned disk, it was formatted in Windows 2003. The aligned tests where run with a disk formatted by Windows 2008 and then reattached to the Windows 2003 server.  For testing I used Iometer with the same config file I ran my IX4 tests, it creates a 4GB dummy file on the disk and performs the reads and writes on that dummy file.



The results

When looking at the results, it clearly shows the PX4-300R is running circles around the IX4. It also shows that for the PX4-300R iSCSI performs a little better than NFS, which was completely different for the IX4 that showed a clear advantage for NFS over iSCSI.

Max Throughput-100%Read

Config IOPS MB/sec
PX4 iSCSI Aligned 3.500 114
PX4 iSCSI Non-Aligned 3.486 114
IX4 iSCSI Non-Aligned 1.761 55
PX4 NFS Aligned 3.372 110
PX4 NFS Non-Aligned 3.363 110
IX4 NFS Non-Aligned 3.475 108

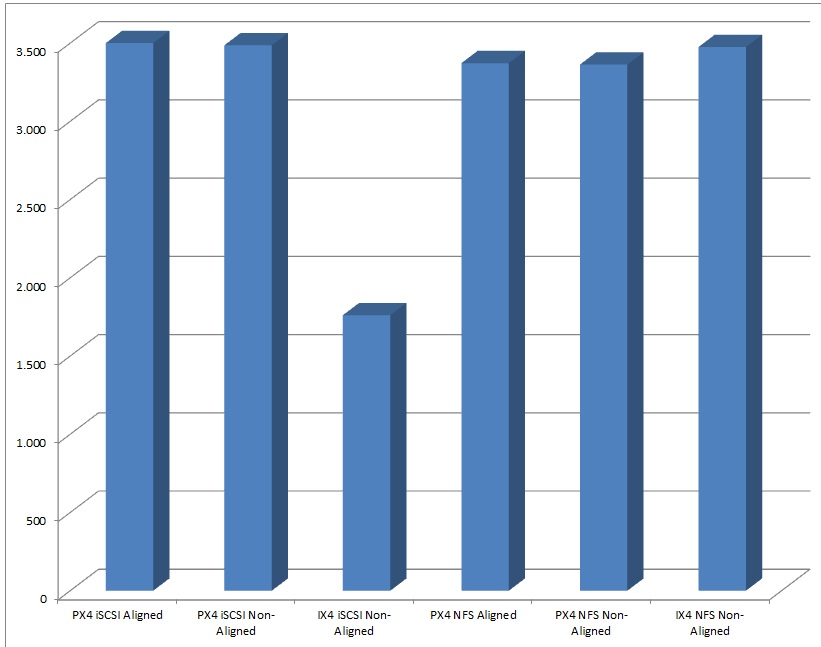

Max Throughput-100%Read

Max Throughput-50%Read

Config IOPS MB/sec
PX4 iSCSI Aligned 5.267 172
PX4 iSCSI Non-Aligned 5.142 168
IX4 iSCSI Non-Aligned 705 22
PX4 NFS Aligned 4.678 153
PX4 NFS Non-Aligned 4.655 152
IX4 NFS Non-Aligned 684 21

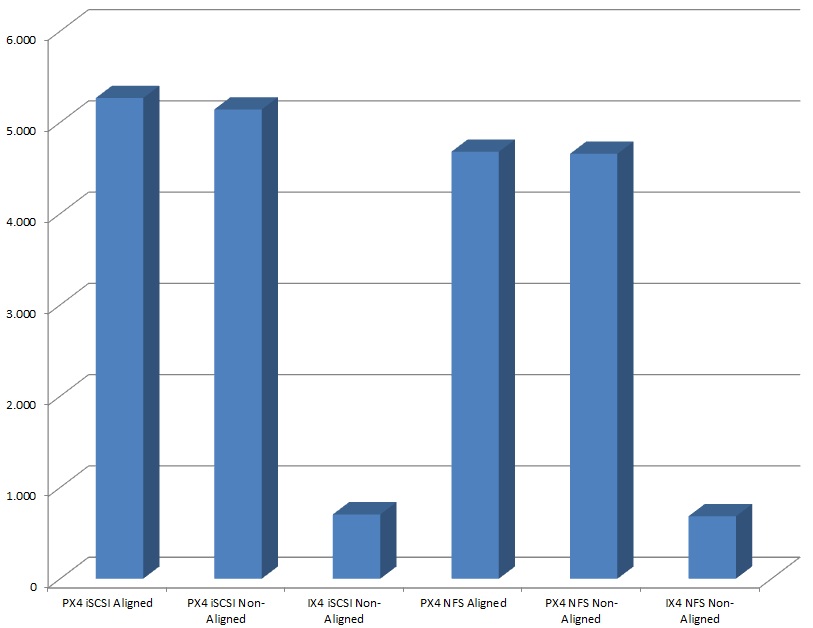

Max Throughput-50%Read PX4-300R

Random-8K-70% Read

Config IOPS MB/sec
PX4 iSCSI Aligned 520 4
PX4 iSCSI Non-Aligned 485 3,9
IX4 iSCSI Non-Aligned 64 0,5
PX4 NFS Aligned 145 1,1
PX4 NFS Non-Aligned 129 1
IX4 NFS Non-Aligned 90 0,7

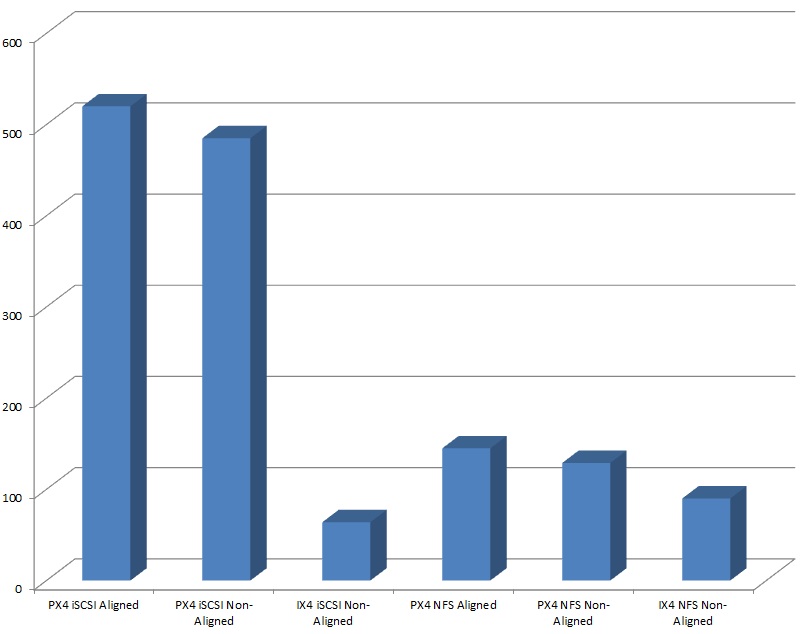

Random-8k-70%Read

RealLife-60%Rand-65%Read

Config IOPS MB/sec
PX4 iSCSI Aligned 645 5,2
PX4 iSCSI Non-Aligned 604 4,9
IX4 iSCSI Non-Aligned 89 0,7
PX4 NFS Aligned 189 1,5
PX4 NFS Non-Aligned 179 1,4
IX4 NFS Non-Aligned 112 0,8

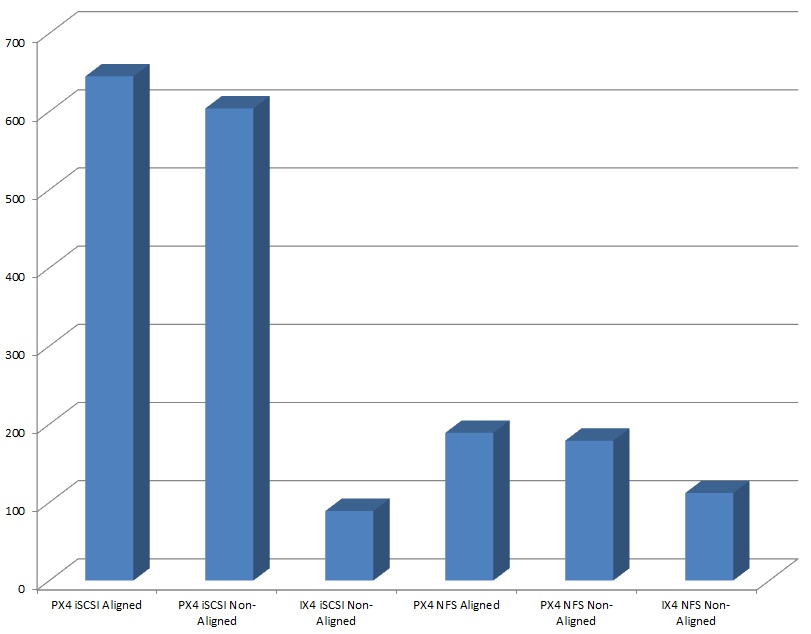

RealLife-60%Rand-65%Read



Performance recap

When looking at the charts it is clear that the PX4-300R performs much better than the IX4, sometimes up to 7 times faster. It is good to see that iSCSI and NFS perform almost equal on read performance but surprised to see that NFS can’t keep up with iSCSI in ‘real-world’ tests.



Partition alignment

Running the tests doesn’t take that much time so I decided to also check if partition alignment would really make a difference by formatting one disk with Windows 2003 and one disk using Windows 2008. In Windows 2008 partitions are automatically aligned when formatted. As you can see from the results there is a clear difference between aligned and non-aligned partitions. For heavy read the difference isn’t that big in percentage, but still a 100 IOPS, for the other tests you can see a difference of between 5-7%. That’s free IOPS you get back when making sure you align your partitions.



Conclusion

For the workload I would like to use it for, which is running as my homelab shared storage and store some video’s and foto’s, this would make a great NAS. It holds a number of other features as well, like automatic RSYNC of files to other rsync enabled devices, syncing with cloud services and creating a personal cloud. But I don’t care so much for them personally. What I find important is that it feels fast, almost like I’m working on enterprise storage. Of course it can’t compete with enterprise storage but with the few VMs running in my lab, this is great stuff. The PX4 is more expensive than the IX4, but then again it performs up to 7 times faster in some tests. For a complete overview of the different products, see the Iomega Network Storage overview page.



Test tools

If you want to perform these tests your self, you can download this Gabes-PerfTest.zip which includes iometer and the test configuration file. Would be great if you post your results in the comments.

2 thoughts on “Performance test of Iomega StorCenter PX4-300R

  1. Some Results in 2014,
    PX6-300D FW 4.1 NFS 6x1TB Ultrastar A7K2000 HUA722010CLA330
    Test in Server2012 VM in ESXi 5.5:
    Total IOs/sek Total MB/sek
    Max Throughput-100%Read 3384 110
    Max Throughput-50%Read 4777 150
    Random-8k-70%Read 395 3,24
    RealLife-60%Rand-65%Read. 474 3,8
